Network robustness improvement via long-range links

Article metrics

Abstract

Many systems are today modelled as complex networks, since this representation has been proven being an effective approach for understanding and controlling many real-world phenomena. A significant area of interest and research is that of networks robustness, which aims to explore to what extent a network keeps working when failures occur in its structure and how disruptions can be avoided. In this paper, we introduce the idea of exploiting long-range links to improve the robustness of Scale-Free (SF) networks. Several experiments are carried out by attacking the networks before and after the addition of links between the farthest nodes, and the results show that this approach effectively improves the SF network correct functionalities better than other commonly used strategies.

Introduction

The ideas, principles and advantages gathered about complex networks during last decades affect disparate scenarios, since networks revealed as an effective approach to model, understand and control many real-world phenomena [1, 2]. Today, the ordinary course of our society more and more relies on the correct functioning and stability of its underlying networks, from power lines to air traffic and railways, as well as social, commercial, computer networks and many others.

One of the main reasons that could compromise the correct functioning of a network is the failing of one or more nodes, whose side effect is preventing other active nodes from connecting to the rest of network, leading to a partitioned or even destroyed system.

The vulnerability analysis holds a significant role in establishing to what extent a network still provides expected services notwithstanding failures in its structure, either natural or man-made. This property, known as robustness, is crucial in many cases and should be considered among the set of the properties of a network, such as the node types, its dynamics, the degree distribution an so on. Despite its importance, it is still missing a sharp definition; in the literature, it can be intended as the ability of a network “to deliver an anticipated level of performance” [3], or “to maintain its efficiency after failures” [4, 5].

Definition apart, a further and more relevant step is how to improve the network robustness; a first approach is protecting sensitive/critical nodes, but actually this solution is not effective when facing massive attacks, as for instance when malicious cooperate to subvert computer networks. More useful attempts are the insertion of new autonomous nodes, or the rewiring of specific (possibly extensive) portion of the network; such solutions though could require significant physical modifications and/or imply high costs (e.g. think to a railway system).

A more viable alternative is the addition of a small number of new connections between specific nodes to increase the overall network robustness. Several criteria can be adopted to achieve this goal, from random links addition [6], to low-betweenness/low-degree addition strategies [7], algebraic connectivity based addition [8] or even inter degree-degree strategy for multiplex networks [9].

The choice of which nodes should be considered is also affected by the type of the network involved; here, we focus in particular on Scale-Free (SF) networks, modelling many real-world scenarios. Although intuition could suggest to strengthen hub links, being hubs the nodes with high degree (that play a strategic role for in SF networks connectiveness), here we investigate on adding links between nodes with a secondary role respect to hubs, specifically between nodes belonging to the network periphery. The idea of improving such long-range connections aims at creating a sort of backup paths to leverage in case of hub failures due to attacks. The introduction of long-range links to enhance some properties of a network has been proposed in the past in a different context. For example, in [10,11,12,13], the authors exploit long-range links to improve the PageRank score of a target node.

The work presented in this paper investigates on this idea to improve the robustness of a network. Basically, we propose to add one or more links between the farthest nodes in the network; several experiments carried out with attacks before and after the addition of such links show that this approach is effective yet efficient in preserving network functionalities, hence enhancing its robustness.

The paper is organized as follows: in "Related works" section, an overview of related works is presented, while in "Robustness improvement strategy" section, our proposal is introduced in detail, followed by a set of experiments conducted on different networks, illustrated and discussed in "Robustness assessment" section. Our final remarks are summarized in "Conclusions" section.

Related works

The literature concerning robustness for complex networks steadily grows up over these last years due to their larger adoption in the modelling of complex systems. Papers covering this topic can be split into two large groups: theoretical studies on the meaning of robustness in the field of complex networks and a vibrant line of work concerning complex network robustness failures in the real-world case studies.

The literature devoted a big effort to define the meaning of robustness and to find metrics useful to evaluate it in several contexts. For example, it is generally quantified by measuring the impact of the removal of nodes (and their corresponding links) on specific network properties. The paper [14] evaluates robustness using the Largest Connected Component (LCC), while paper [15] engages percolation thresholds; other examples are the elasticity that captures throughput under node and link removal [16], the spectrum of a graph [17], or other more sophisticated approaches [18]. Paper [19] discusses the robustness of the link prediction in complex network [20] under several attack strategies to the network: random attack, centrality-based attacks, similarity-based attacks and simulated annealing-based attack. The paper [21] introduces the sub-graph robustness problem under random attacks, localized attacks and targeted attacks. The last attack strategy is quite frequent case in a real world mainly in popular social network platforms that are generally not completely mapped. The authors of [21] discuss metrics used to evaluate the robustness of complex networks via edge betweenness centrality, the number of links cut sets and node Wiener impact; they also propose a variable neighbourhood search heuristic to improve it by adding a few well-placed links. Finally, in [22], the authors deal with the robustness of community structure rather than that of complex networks.

Among the factors robustness depend on, the network structure is still one of the most relevant [23]. For instance, it is well established that Scale-Free networks are more robust than Erdős-Rényi to random failures, but it is particularly susceptible to intentional attacks that target their hubs, i.e. few nodes with very high degree that hold most of network connectedness [24]. The work [21] shows that the sub-network robustness depends on several factors including network topology, attack mode, sampling method and the amount of data missing, generalizing some well-known robustness principles of complex networks.

In [3], the authors evaluate the relationship between network hierarchy and robustness using classical metrics to quantify robustness under several targeted failures, while in [25] the authors study the connection between robustness of community structure and the critical threshold of the resolution parameter, used to explore communities at different scales. In addition, the dynamics of the network must be considered [26] since the behaviour of robustness in dynamic systems is different than the one of static systems (some real systems for example can spontaneously recover from failures after a while, as in brain seizures). In [27], the changing of dependency among nodes over time is studied using an evolving network model consisting of failure and recovery mechanisms.

Paper [28] addresses the problem of combined attacks and [29] presents the problem of the cascading failures between interdependent networks, whereas [30] discusses the interplay between cascading failures and virus propagation.

Several applications are deeply discussed in the literature; we believe that one of the most interesting real-world application areas where robustness can impact significantly is social network, supply chain, power grid and public transport network. The paper [31] performs a comparative study based on distance distribution in social networks and shows an example applied to Amazon. The paper [32] presents Chilean Internet backbone as a case study to show the robustness, considering three and four extra links.

The authors of [33] present some interesting applications of complex network robustness to the supply chain problem and also discuss its risks, including the global supply chain one, planning for catastrophic events and increasing chain agility and risk mitigation. The authors model the system with a couple of interfering networks (an undirected and a direct network) and craft a time-varied functional equation to study the dynamic process of failed loads propagation in such interdependent network. The numerical simulations show that an abnormal crash of the network is recorded also with the removal of a small number of nodes. In [34], the authors study the robustness of manufacturing industry and validate it using an empirical dataset. Such industry is characterized by large-scale interdependent networks, a complex structure that connects companies according to commercial (buy or sell) transactions among them. The authors highlight macroscopic and microscopic characteristics of the network and shed light on vulnerabilities of the system.

In [35], the application of Network of Networks (NON) robustness for grid networks is discussed.

Another common area where complex network robustness is studied is the transport networks. Several case studies can be found in the literature; for instance, [36] analyses the vulnerability of the Shanghai urban rail, [37] proposes some ad hoc measuring of vulnerability of transportation network, [38] analyses the UK rail network in term of resilience and robustness, and [39] uses the case study of San Paulo transport network to discuss about the connection between structure and robustness.

With respect to all works cited in this section, in our work:

  • the idea of exploiting long-range connections is not present in other papers; hence, to the best of our knowledge, this represents a main novelty;

  • we do not introduce new robustness definitions, rather we assume as measure the LCC size [14] variation before and after attacks, mainly since it conveys information about the number and size of the connected network components;

  • the type of network we focus on is the Scale-Free (SF), since this model better approximates real-world networks;

  • the type of attack we consider for robustness assessment is those described in [40], i.e. targeted, degree-based attacks that particularly affect SF networks (as [23] pointed out);

  • we do not address specific robustness issues as sub-graph [21], community structure [22], network hierarchy [3], or even dynamics [26]; these questions are currently out of our scope;

  • the robustness question has a relevant impact on many real-world networks. For this reason, in addition to synthetic ones, we performed experiments on some real scenarios, as biological, social, technological and the Web (see "Robustness assessment" section).

Robustness improvement strategy

A commonly studied robustness enhancing technique is rewiring, i.e. the number and type of nodes are left untouched, while links among them can be modified according to some global strategy. Of course, the chosen strategy should avoid significant costs; therefore, one wants to achieve a more robust network while adding as few links as possible. The heuristic we propose in this paper is a wiring strategy based on adding long-distance links, i.e. connecting nodes belonging to the periphery of the network. The proposed strategy is applied to Scale-Free (SF) networks since they are the most common model for many real-world networks [2]. SF networks present a power–law degree distribution (i.e. a typical SF network shows few nodes with a very high-degree (hubs) and a large amount of nodes with very low degree) that is exploited by our strategy in order to improve the network robustness. Therefore, two different strategies against loss of connectivity can be evaluated:

  1. 1

    increasing the number of links that connect the hubs (or their neighbours), i.e. acting on the so-called short-distance links;

  2. 2

    conversely, increasing the number of links connecting node in the periphery (long-distance links).

The former strategy is based on the intuition that enhancing the connectivity among the hubs makes it harder to get a disconnected net. However, this strategy fails when hubs are directly attacked and, in addition, can be very expensive since hubs usually are very important nodes inside the network, hence creating new links for them could imply higher costs. On the other hand, the latter strategy, although counter-intuitive, is less expensive since it involves nodes playing a less relevant role in the network, and aims at creating new paths between them. Connecting long-distance nodes actually creates a set of backup paths whose impact is higher than adding “yet another” link between hubs; indeed, we believe that long-distance links act as bridges between the neighbourhood of two different hubs that can be effectively used in case of failures/attacks.

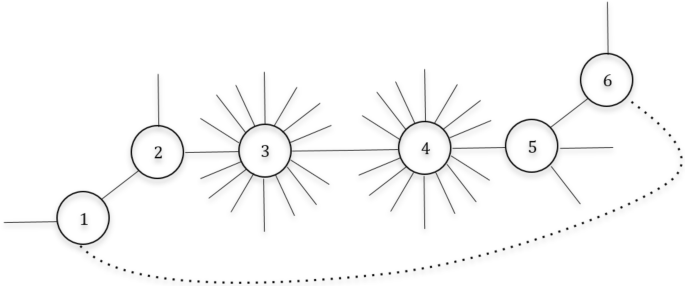

Figure 1 illustrates the proposed mechanism. As a toy example, the figure shows a portion of a Scale-Free network composed by six nodes, where two of them (nodes 3 and 4) are hubs. If we remove one of the two hubs (e.g. node 3), it is likely that the network splits in two separate components. Moreover, the distance (i.e. the shortest path) among hubs is always very short, since hubs are usually directly connected (or they are just at few steps far away). The strong connection among hubs mainly depends on two factors, (1) hubs are generally the core around which the network grown, and (2) they have many links; hence, they are connected with a high probability. In summary, it is highly unlikely that two hubs are very distant each other.

Fig. 1
figure1

SF network rewiring strategy

Applying the proposed strategy to the example, we made the network more robust by adding a new link (dashed line) between nodes 1 and 6. This increases the robustness since the resulting network remains connected even if hubs 3 and 4 are removed.

Robustness assessment

In order to evaluate the proposed strategy, we simulate an attack on several networks before and after the addition of new links between unconnected nodes and use as robustness measure the size of the Largest Connected Component (LCC), i.e. the largest sub-network in which any nodes pair is connected by some path. We compare various rewiring strategies in addition to our proposal. In the following, we detail the test networks, the attack process and other rewiring approaches considered.

Experiments outline

Test networks

Experiments dataset consists of five synthetic and four real-world networks. Specifically, we test on five Scale-Free (SF) networks with 1k nodes and average degree 2, generated using a refined version of the model presented in [41] and implemented in Pajek [42], while the four real-world networks come from NetworkRepository [43], featured with \(1k \sim 3k\) nodes and average degree \(\langle k \rangle \ll N\), where N is the number of nodes, i.e. they are sparse. The real-world networks belong to four different categories (biological, social, technological and web), and for each of them, we extract the LCC before performing the simulations. All networks are undirected or considered as such. See Table 1 for more details about the pre-processed networks.

Table 1 Full list of the test networks. The column |N| is the number of nodes, column |E| is the number of edges, column \(\langle k \rangle\) is the average degree, column \({\overline{C}}\) is the average clustering coefficient (as defined in [44]), and column \(l_{\text{G}}\) is the average path length

Attacks

During each experiment, we perform two types of degree-based attack on the vertices which differ on when nodes degree is computed. As seen in [40], during the initial degree attack (ID) we compute the degree of each node at the beginning and we remove the nodes in descending degree order, while during the recalculated degree attack (RD) we compute the degree before any removal step and remove only the node with the highest degree.

Other strategies

Here, we briefly introduce other robustness enhancement strategies that are based on the creation of new links and that are used in the next section as baselines.

  • Random based (R) [45]: one of the most extensively used strategies just adds new links between randomly chosen unconnected pair of nodes. Of course, the time complexity of this strategy is very low (O(1));

  • Degree based [45]: another class of strategies that employs preferential attachment between nodes depending on their degree. Low-degree (LK) strategy connects nodes with the lowest degree in the network, while the high-degree (HK) strategy connects nodes with the highest degree. The time complexity of this strategy depends on the sorting algorithm used to sort nodes in degree order, so we assume it is O(NlogN), where N is the number of nodes in the network;

  • Betweenness based: in a similar fashion as the degree strategy, we try connecting nodes with the lowest (LB) or the highest betweenness (HB). The betweenness of a node is a centrality measure defined as the ratio of the shortest paths between every pair of nodes that pass through that node [46]. The time complexity is polynomial because of the betweenness computation and of the sorting of the nodes according to their value, so it is \(O(N M + N \text{log} N)\), where M is the number of links in the network.

It should be noted that in the above strategies neither self-loops nor multiple links are allowed, since the attacks are performed on the nodes and those links would be removed all at once with one of the incident nodes.

Finally, we leave out the complexity of testing if the link already exists and the multiple picks if the chosen pair of nodes is already connected.

Results

In this section, we present the results of the robustness enhancement simulations obtained by applying our proposed strategy. Each experiment is repeated ten times and averaged in order to remove any bias. In addition, we average again the results on the five Scale-Free networks to remove any realization-related bias.

Figure 2 reports the dismantling curves of the network obtained adding from 0 to 50 new links according to the proposed long-distance wiring strategy. Note that the LCC is computed during an ID attack (as defined in the previous section). As shown in the figure, there is a clear gain in robustness, that becomes more substantial as the number of added links increases. Specifically, by introducing long-distance links, we obtain a peak increment of about \(16\%\) of LCC size by introducing \(2.5\%\) of new links. To help quantify the robustness enhancement, we also report the LCC size gains in the figure inset, and also peak values of each curve in Table 2. These results confirm our intuition that a small fraction of new links placed in the right place can provide a significant improvement in the network resilience.

Fig. 2
figure2

SF networks robustness enhancement by using long-distance strategy under ID attack. The inset shows the gain (or delta) in the size of the LCC with respect to the original network

Table 2 SF networks peak increase in LCC size using long-distance and low-degree strategies under ID and RD attack

As shown in Fig. 3 and Table 2, the above results also hold in the case of the more aggressive RD attack strategy. This is a further confirmation that long-distance links are able to increase the robustness of the original network independently of the degree-based node removal type of attacks used. Unless otherwise specified, in the rest of the paper, all results are obtained by considering the RD attack algorithm.

Fig. 3
figure3

SF networks robustness enhancement by using long-distance strategy under RD attack. The inset shows the gain (or delta) in the size of the LCC with respect to the original network

The next question we try to address concerns the comparison of performance of our wiring strategy (LD) with respect to the other robustness enhancement techniques cited in the previous section. The first set of experiments (Fig. 4) reports the increments of robustness of a SF networks obtained by adding 10 links using LD, LB, HB, LK, HK and R strategies. Specifically, the inset shows the gain in LCC size with respect to the original network for different strategies. The results highlight that LD strategy outperforms all the others. Of course, the gain is larger when we add 50 new links (see Fig. 5). In this case, LD gets a peak gain that is twice with respect to the second best strategy. Therefore, we conclude that LD seems a good wiring strategy even in comparison with other approaches. The peak values of LCC size gain for each strategy are found in Table 3.

Fig. 4
figure4

SF networks robustness enhancement by using different strategies under RD attack. All plots are obtained by adding 10 new links. The inset shows the gain (or delta) in the size of the LCC with respect to the original network

Fig. 5
figure5

SF networks robustness enhancement by using different strategies under RD attack. All plots are obtained by adding 50 new links. The inset shows the gain (or delta) in the size of the LCC with respect to the original network

Table 3 SF networks peak increase in LCC size by using different strategies under RD attack with 10 and 50 new links

In order to quantify the magnitude of the increase in performance of LD strategy with respect to others, in Fig. 6 we plot a comparison between LB and LD by varying the number of links added. Similar figures could be shown for the other strategies, but we omit them for the sake of concision and space as the results would be similar in the best case. As shown in the figure, LD performs initially worse than LB with a low number of new links, but this trend changes just after removing about \(13\%\) of nodes. After such a threshold, LD usually creates networks that are more robust than those obtained by using an LB-based wiring strategy. In fact, LD exhibits a peak performance of about \(15\%\) greater than LB when a fraction of \(20\%\) of nodes is removed.

Fig. 6
figure6

SF networks robustness enhancement: comparison between LD and LB strategies under RD attack. Each plot represents the (normalized) difference between the LCC size of the network rewired by using LD strategy and that obtained using an LB-based robustness enhancement method

Before moving to real-world networks, we investigate why the low-degree strategy performs better when few nodes are removed in the network. Please note that similar considerations can be made for the low-betweenness case. To get an insight, we plot the synthetic networks using a force-directed layout, specifically the Fruchterman–Reingold and visually inspect which nodes are connected by the two strategies. One of the networks is shown in Fig. 7. We colour links that are added by the LD and LK strategies (and also the nodes they connect) and use a third colour if there is an overlap between the two. Our intuition is that LK strategy tends to connect nodes that are closer to the rich-group of the network, thereby creating alternative paths that keep it connected as hubs are removed, while LD strategy focuses on the periphery creating new paths that are left untouched when the rich-group is destroyed (i.e. when many nodes are removed along with the links introduced by LK strategy).

Fig. 7
figure7

Plot of one of the SF networks enhanced by LD and LK using the Fruchterman–Reingold layout

After investigating the LD strategy behaviour on synthetic SF networks, we test it on real-world networks. Specifically, we test on a biological network (bio-yeast-protein-inter), on a social network (soc-hamsterster), on a technological network (tech-routers) and on a Web network (web-edu). Refer to Table 1 for details about them.

Figure 8 shows the LCC size gain (w.r.t. the original instance) for each of those networks. Again, we add from 5 to 50 new links by using the LD strategy and perform a RD-based node removal attack. The strategy shows variable performance depending on the considered network, but the gain is always greater than zero, meaning that the LD strategy can be successfully used to enhance networks modelling real-world systems. Peak values of these plots can be found in column “LD” of Table 4.

Fig. 8
figure8

Real-world networks robustness enhancement by using long-distance strategy under RD attack

Finally, in Fig. 9, we show a comparison between LD and LB strategies on the above-mentioned real-world networks. Even in this case, LD is a more promising wiring strategy than the latter. In fact, it provides larger gains in robustness (computed as the difference between the gains), with a peak value of almost \(28\%\) on the web-edu network. All peak values of can be found in column “LD–LB” of Table 4.

Fig. 9
figure9

Real-world networks robustness enhancement: comparison between LD and LB strategies under RD attack. Each plot represents the (normalized) difference between the LCC size of the network rewired by using LD strategy and that obtained using an LB-based robustness enhancement method

Table 4 RW networks peak increase in LCC size by using long-distance strategy (LD column) and the peak difference with the low-betweenness-based one in column (LD–LB), computed as the difference of deltas

Conclusions

This paper presents a new strategy to address the problem of network robustness enhancement.

The proposed strategy tries to increase the interconnection among nodes by introducing new links that connect long-distance ones. This operation is quite counter-intuitive since the most common way to enhance network connectivity is by reinforcing the most important junctions (as hubs in SF networks).

To validate the proposal, we simulated attacks on several networks—both synthetic and real-world—before and after the addition of long-distance links and compared different rewiring strategies using the Largest Connected Component size as a robustness measure. The results show that our proposed strategy outperforms other popular ones.

Further investigations are needed to study the theoretical reasons that make the long-distance links a better choice than others apparently more intuitive. Other questions also deserve future attention, as other robustness measure criteria than LCC size, the resilience of our proposal with respect to specific SF network attacks, as well as its feasibility to other structures (as Erdős-Rényi and Watts-Strogatz).

Availability of data and materials

Not applicable.

Abbreviations

LCC:

Largest Connected Component

SF:

Scale-free

ID:

Initial degree

RD:

Degree attack

R:

Random based

LK:

Low degree

HK:

High degree

LB:

Lowest betweenness

HB:

Highest betweenness

LD:

Long distance
